WPS (PIN Code) Connection

  1. Tap Other connection types.

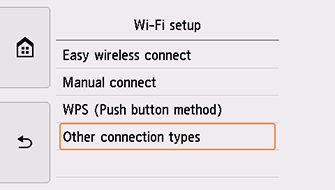

    Wi-Fi setup screen: Select Other connection types

  2. Tap WPS (PIN code method).

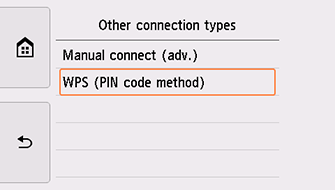

    Other connection types screen: Select WPS (PIN code method)

  3. Follow the on-screen instructions on the computer to set a PIN code on the wireless router.

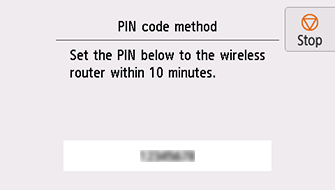

    PIN code method screen: Set the PIN below to the wireless router within 10 minutes.

  4. When the screen on the below appears, tap OK.

    Completion screen (Connected to the wireless router.)

    If a different screen appears, see "Troubleshooting."

  5. Tap HOME on the left side of the screen.

    HOME screen

    The network connection setup is now complete.

    When connection is complete, Network appears at the bottom left of the screen.

Windows

In the taskbar, click the application software you have been using for setup, and then follow the on-screen instructions to proceed with setup.

macOS

Return to the application software and proceed with the setup.

Click Setup icon in the Dock, follow the on-screen instructions to proceed with setup.

Dock
